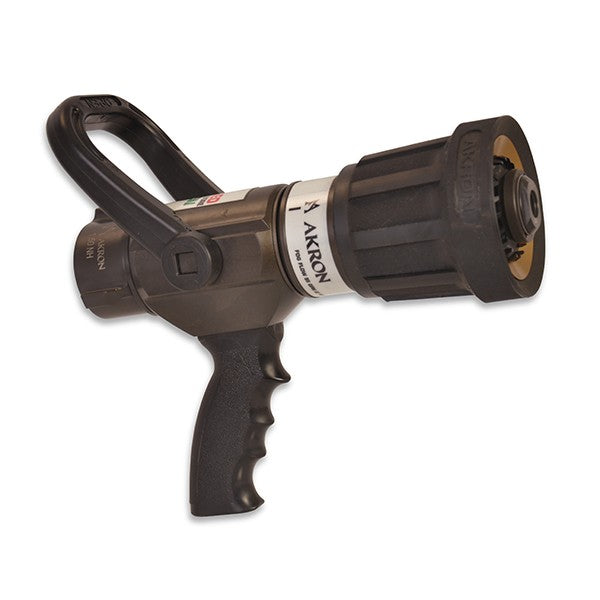

1520 Akron 1.5" SaberJet Nozzle With Pistol Grip DSO With Nozzle Color Clip Kit

Model: 1520

1520 Akron 1.5" SaberJet Nozzle With Pistol Grip DSO With Nozzle Color Clip Kit

Model: 1520

Regular price $1,062.95
  • Secure payments
Shipping calculated at checkout.

Akron Brass Logo


It gives you the capability to flow Fog, Solid Bore, or Combination Stream.

The patented Dual Shutoff SaberJet is our original multipurpose nozzle with both solid bore penetration and fog stream capability, available with a 1/2" or 5/8" smooth bore tip.

akron brass 1520 saberjet fog akron brass 1520 saberjet solid bore akron brass 1620 saberjet combination
Fog Solid Bore Combination


The Dual Shutoff SaberJet fire hose nozzles can operate efficiently at pressures as low as 50 psi for reduced firefighter fatigue, or up to 100 psi for maximum flow. This versatile, multi-purpose fire nozzle is well suited for multiple applications, including for use with water and foam.

  • Compatible with Quick-Attack Foam Tube Style 796
  • Comes with pistol grip
  • Tip Options: 1/2" or 5/8" (must specify)
  • Fog flow at 100 psi: 95 GPM

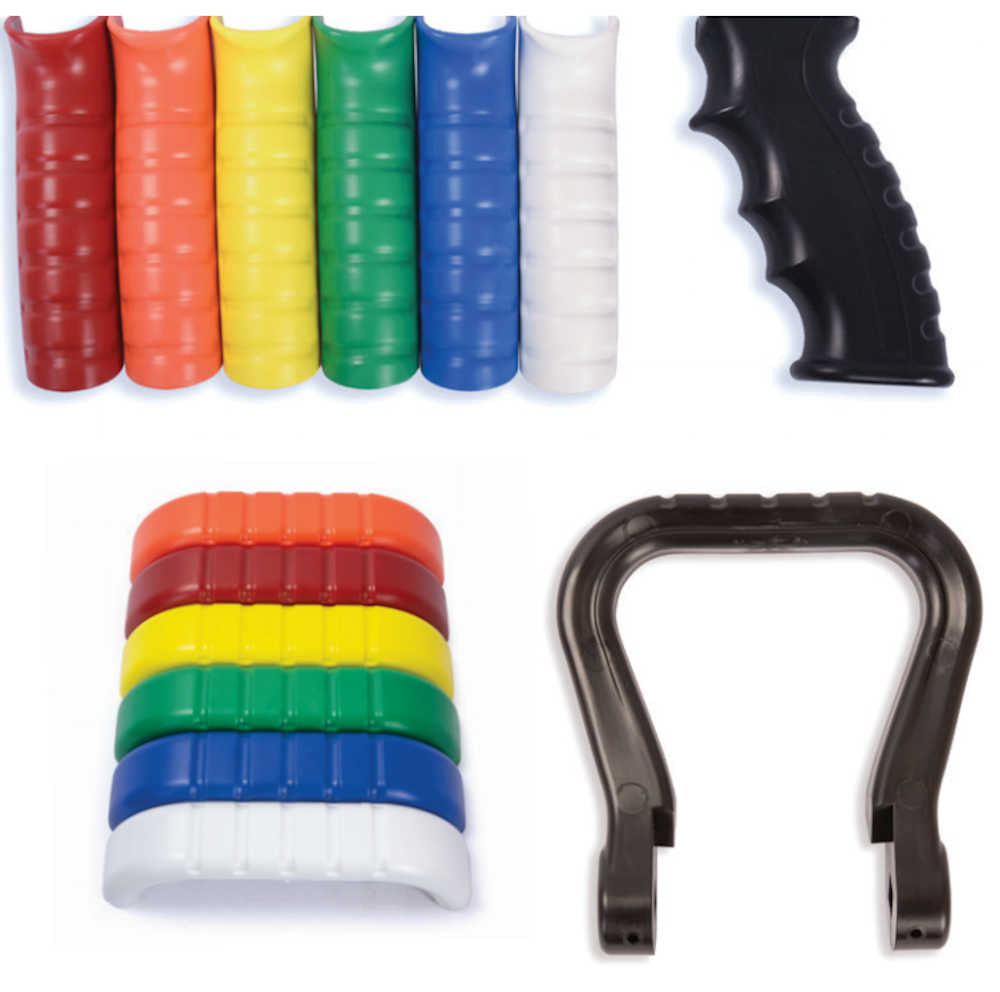

Nozzle Color Clip Kit

Your nozzle includes a free nozzle color code kit

  • No mechanical fasteners, simple to switch, just snap-on.
  • Includes (6) bail handle clips and (6) pistol grip clips in the following colors:
    • Black
    • Blue
    • Green
    • Orange
    • Yellow
    • White

Flow Data

Tip Size Inlet
Solid Bore
1/2” 50 45 67 110
75 60 82 140
100 67 95 162
5/8” 50 75 67 136
75 95 82 170
100 112 95 196
Actual results may vary depending on conditions.


A combination solid stream and fog nozzle with the capability to flow either stream independently or simultaneously. The solid bore shall have field changeable tips with orifices of either ½", 5/8", and the fog shall flow at 100 psi (7 bar): 95 GPM (360 LPM). The nozzle shall have a pistol grip, spinning teeth, multiple pattern detents, flush without shutting down, twist shutoff of the fog stream, and a full-time swivel inlet. The bale shutoff of the smooth bore shall be with dual drive trunnions. The nozzle shall also be constructed of lightweight Pyrolite, have a shutoff ball with flow diversion for the fog waterway, have a 10-year warranty and meet NFPA 1964

Style 1520
Certification(s) Certification
Warranty Warranty
Weight 5 3/8 lbs (2.4 kg)
Type Combination Fog/Smooth Bore
Material Pyrolite
Brand SaberJet
Swivel Inlet 1 1/2'' (38 mm)
Length 10 1/2" (267 mm)
Width 4 1/4" (108 mm)
Height 10 1/4" (203 mm)


*Special threads are approximate eight-week lead time and not subject to cancellation or return. Please be certain of your thread type before ordering.

Important Thread Data: Please review this if you are not certain the type of threads your department has.

This item is not available for export. We cannot supply any export documentation.
