416 STRAIGHT NOZZLE TIP

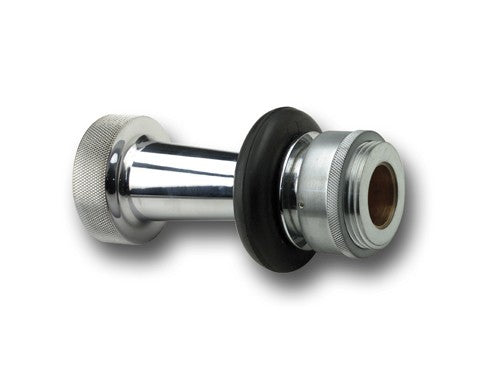

Straight nozzle tip

Features

• Straight tip nozzle
• Pyrolite
• Brass or Pyrolite finish
• Thread protector
• Protective rubber bumper
• 1-1/8'' standard orifice
• Additional orifice options: 7/8'', 1¼''
• Replacement for style 0417 tip

Specifications

Style	0416
Warranty
Weight	2.75 lbs (1.2 kg)
Material	Pyrolite, cast or chrome
Length	6'' (152 mm)
Width	2½" (64 mm)
Height	2½" (64 mm)
Orifice Standard	1-1/8'' (29 mm)
Orifice Optional	7/8'', 1¼'' (22,32 mm)

Note: Special threads are approximate 8 week lead time and not subject to cancellation or return. Please be certain of your thread type before ordering.

Important Thread Data:
Please review this document,
if you are not certain the type of threads your department has.

This item is not available for export. We cannot supply any export documentation.
