Elkhart 241-30 Inline Foam Eductors (30 GPM)
Model: 241-30

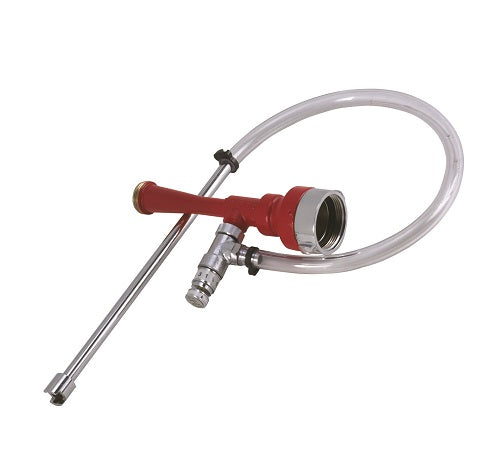

Elkhart 241-30 Inline Foam Eductor
- Ideal for Wildland Firefighting
- Compatible with Most Foam Concentrates
Features
- Are easy hook-up / easy set-up
- Rugged brass construction
- Feature red urethane enamel finish
- Chrome-plated trim
- It can be deployed in any position
- Offer a removable pick-up screen and removable metering valve
- It comes with a clear PVC pick-up hose
| Model | GPM | Metering Valve | Inlet | Outlet | Length | Lbs |
|---|---|---|---|---|---|---|
| 241-30 | 60 | Infinite 0% to 6% | 1” or 1½” | 1” | 8 ½” | 4.5 |
Note: The eductor and your nozzle must have matching flow rates (gpm/lpm) for the foam concentrate to “pick-up.” They are designed to achieve rated flow with an inlet pressure of 200 psi. They will operate at lower inlet pressures, but the flow rate and percentage rate will be affected.
