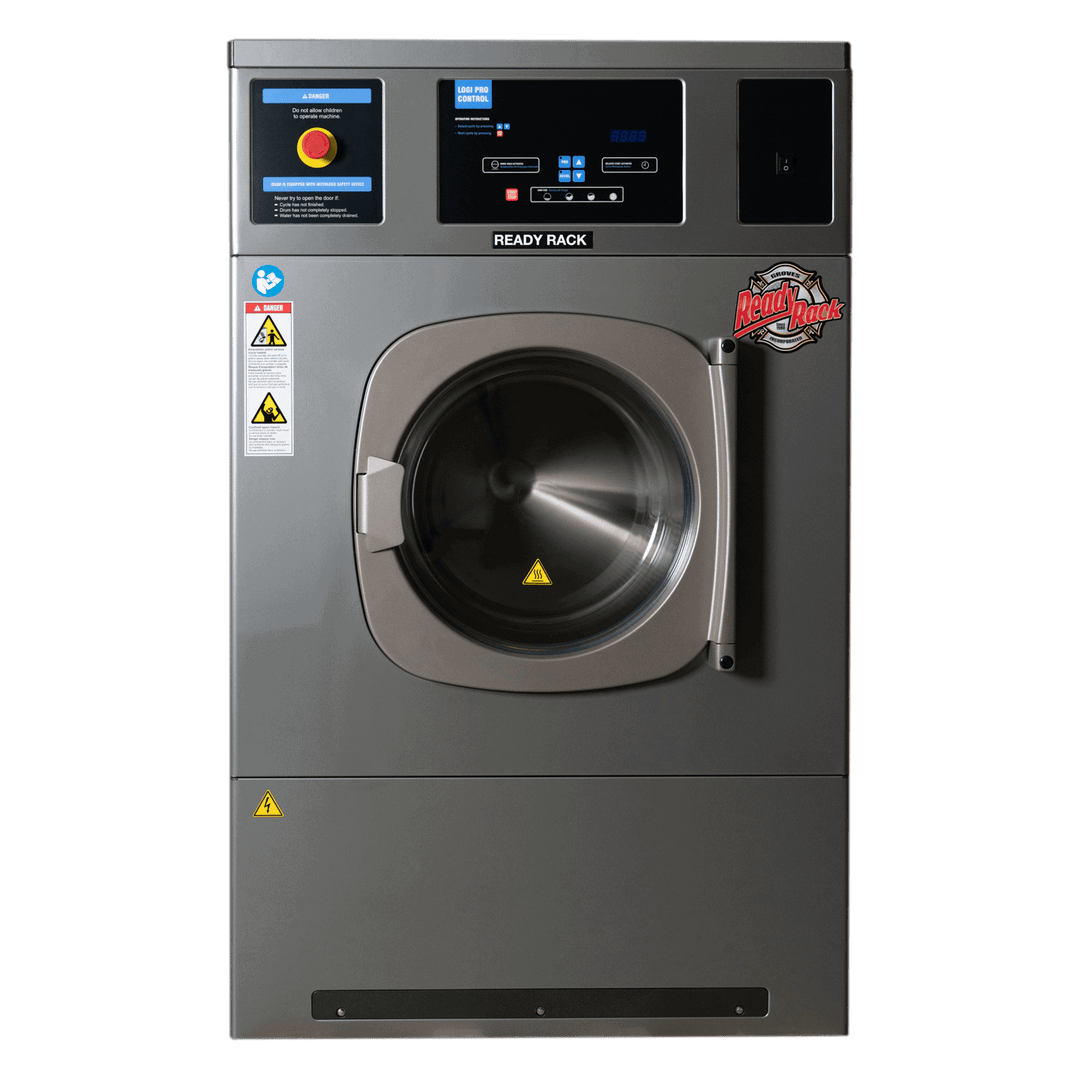

Ready Rack Hard Mounted Extractor 55
Model: EWHM55
READY RACK HARD-MOUNTED EXTRACTOR 55
Hard mount 55 lb capacity washes up to 10pieces of turnout gear
Features & Benefits
- Meets NFPA 1851:2020 Requirements
- Pre-programmed with NFPA 1851 enhanced wash cycles
- Automatic Soap Injector Compatible**
- Commercial Duty Construction & Parts
- Warranty 2 – 5 years (contact Groves for details)
- Hard mount 55lb capacity washes up to 10pieces of turnout gear^
Professional installation is available, please call for the price.
*Extractor pictures are just for representation purposes only and the actual appearance may vary slightly. ^During advanced cleaning, be sure to consult and follow NFPA 1851 guidelines which include separating outer shells and liners. **Sold separately.
| Capacity | 55 lbs. |
| Cylinder Diameter | 25.6 inch |
| Cylinder Depth | 23.1 inch |
| Cylinder Volume | 8 cu ft |
| Net Weight | 741 lbs. |
| Crated Weight | 807 lbs. |
| Machine Width | 34.3 inch |
| Machine Depth | 44.8 inch |
| Machine Height | 56.1 inch |
| Door Opening | 16.8 inch |
| Floor to Door | 19.7 inch |
| Shipping Dimensions (WxDxH) | 35.3 x 46.1 x 61.6 inch |
| Washing Speed | 45 rpm |
| Spin Speeds | 45/100/360/505/600/715 rpm |
| G-force | 50/100/140/200 |
| Static Force Transmitted | 1052 lbs |
| Dynamic Force Transmitted | 2487 lbs |
| Frequency of Dynamic Force | 11.9 Hz |
| Drain Diameter | 3 inch |
| Water Inlets | 2 @ 3/4 inch |
| Recommended Water Pressure | 30-60 PSI |
| Water Flow | 16 gal/min |
| Total Power | 1.05 kW |
WARNING: Cancer and Reproductive Harm -
